Installing Omakub on a Proxmox Virtual Machine

Jul 11, 2025

Adekabang

Tukang Ngoprek

I recently found myself in a common homelab dilemma: I needed a dedicated machine for a jumphost and remote development environment, but all my spare hardware was already tied up with my Proxmox server running other services. So, I decided to leverage my existing Proxmox setup and install Omakub inside a virtual machine.

Omakub, based on Ubuntu, provides a clean and efficient workspace, perfect for keeping my main PC clutter-free while still having a powerful Linux environment at my fingertips. This guide will walk you through setting up a fresh Ubuntu 24.04 VM in Proxmox and then installing Omakub.

VM Specification

For this setup, I allocated the following resources to my Proxmox VM:

• VCPU: 8
• RAM: 16 GB
• Storage: 512 GB SSD

Step by Step: Ubuntu 24.04 Installation (Proxmox VM)

1. Download Ubuntu 24.04 ISO: First, grab the official Ubuntu 24.04 Desktop ISO from the Ubuntu website. https://releases.ubuntu.com/24.04/

2. Create a New VM in Proxmox: Follow the standard Proxmox procedure to create a new virtual machine.

   • Mount the downloaded Ubuntu ISO as a CD/DVD drive.
   • Configure the VM with the specifications mentioned above (8 VCPU, 16 GB RAM, 512 GB SSD).
   • Ensure you select “Qemu Agent” in the VM options for better integration.

3. Install Ubuntu 24.04: Boot the VM and proceed with a fresh installation of Ubuntu 24.04 Desktop. Follow the on-screen prompts to set up your user, timezone, etc.

Post-Installation Setup

Once Ubuntu is installed and you’ve rebooted into your fresh desktop, perform these crucial steps before installing Omakub:

0. Update all repositories:

   sudo apt update && sudo apt upgrade -y

   If a reboot is requested after the update, go ahead and reboot your VM.

1. Install essential tools:

   sudo apt install -y vim qemu-guest-agent openssh-server

2. Enable and start services:

   sudo systemctl enable --now qemu-guest-agent
   sudo systemctl enable --now ssh

Enable Remote Desktop

After ensuring your system is updated and services are running, you can enable Remote Desktop for easier access.

1. Open Settings > System > Remote Desktop.
2. Toggle Remote Desktop to ON.
3. For Remote Login, you can choose to set a specific port (the default RDP port is 3389).
4. Set your desired username and password for remote access.

Now, you can test connecting to your Ubuntu VM using an RDP client. I use Microsoft Remote Desktop on my Mac.

Omakub Installation

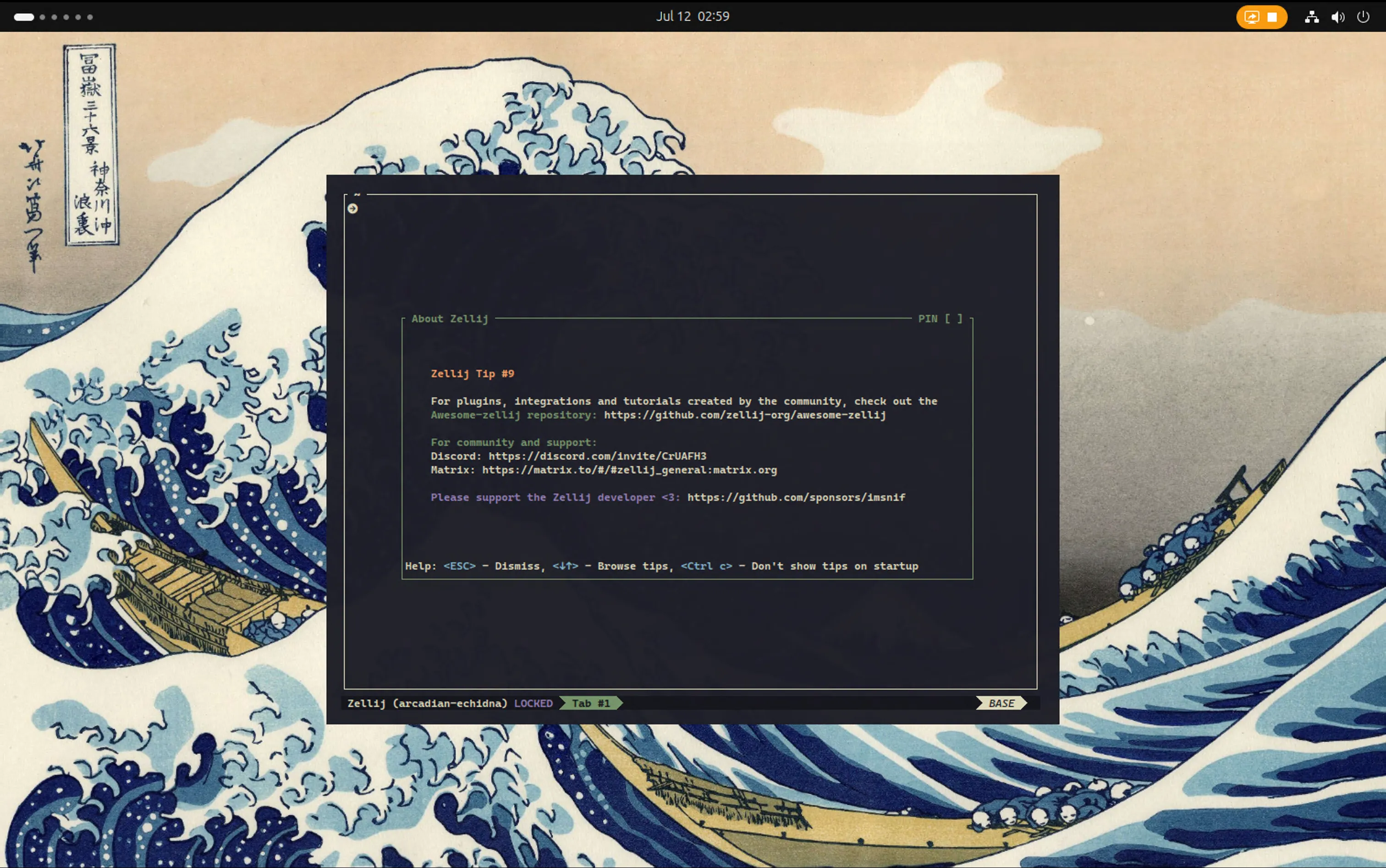

Once you have successfully connected to your Ubuntu VM via RDP, you can proceed with the Omakub installation using their convenient one-line script.

Open a terminal in your Ubuntu VM and run:

wget -qO- https://omakub.org/install | bash

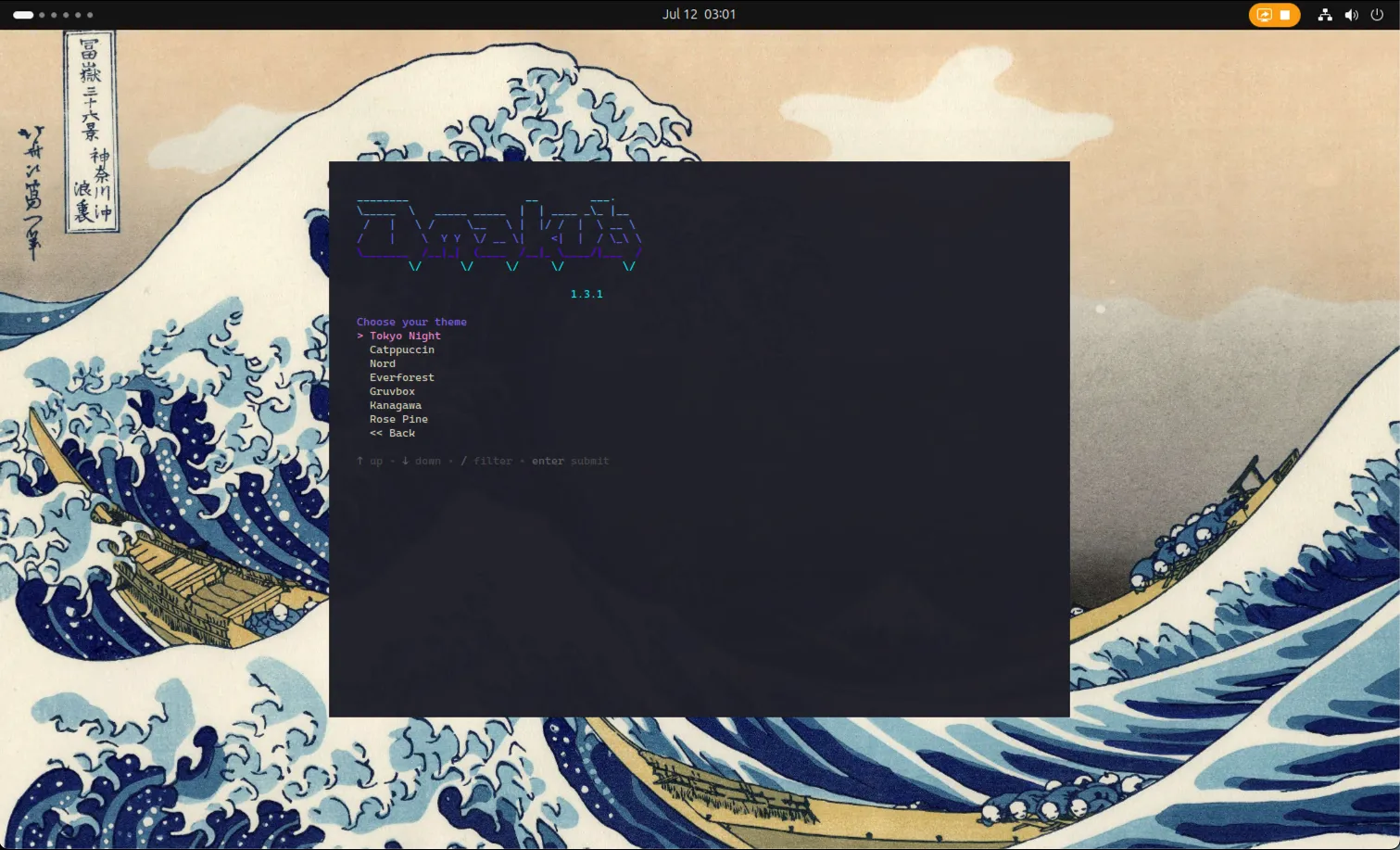

Follow the on-screen prompts to select your preferred options. The installation will take some time and will eventually request a reboot.

Post-Omakub Installation & Troubleshooting

After Omakub is installed and your VM has rebooted, try to connect again via RDP.

• Xorg Session: Omakub uses Xorg. If you experience lagging or a black screen upon login, ensure you select “Ubuntu on Xorg” after entering your username and before typing your password. Look for a small gear icon (or similar) in the bottom right corner of the login screen to choose the session type.

• RDP Black Screen Troubleshooting (macOS Microsoft Remote Desktop): If you encounter a black screen specifically when using Microsoft Remote Desktop on macOS, you might need to adjust the RDP connection file:

  1. Right-click on your existing connection in Microsoft Remote Desktop.
  2. Select “Export” to save the connection settings as an .rdp file.
  3. Open the saved .rdp file with a text editor.
  4. Locate the line:

     use redirection server name:i:0

  5. Change it to:

     use redirection server name:i:1

  6. Save the modified file.
  7. Import the edited file as a new connection in Microsoft Remote Desktop.

  For more details, you can refer to this Reddit thread: https://www.reddit.com/r/Ubuntu/comments/1csoi05/2404_cannot_connect_via_rdp/?utm_source=share&utm_medium=web3x&utm_name=web3xcss&utm_term=1&utm_content=share_button

Troubleshooting Keyboard Shortcuts (Super Key Conflicts)

A common issue when using Remote Desktop from macOS to a Linux VM (especially with Omakub) is that macOS’s system-level shortcuts can conflict with the VM’s shortcuts, particularly those involving the Super key (Cmd key on Mac). For example, Super+Space often triggers Spotlight on macOS instead of Omakub’s application launcher.

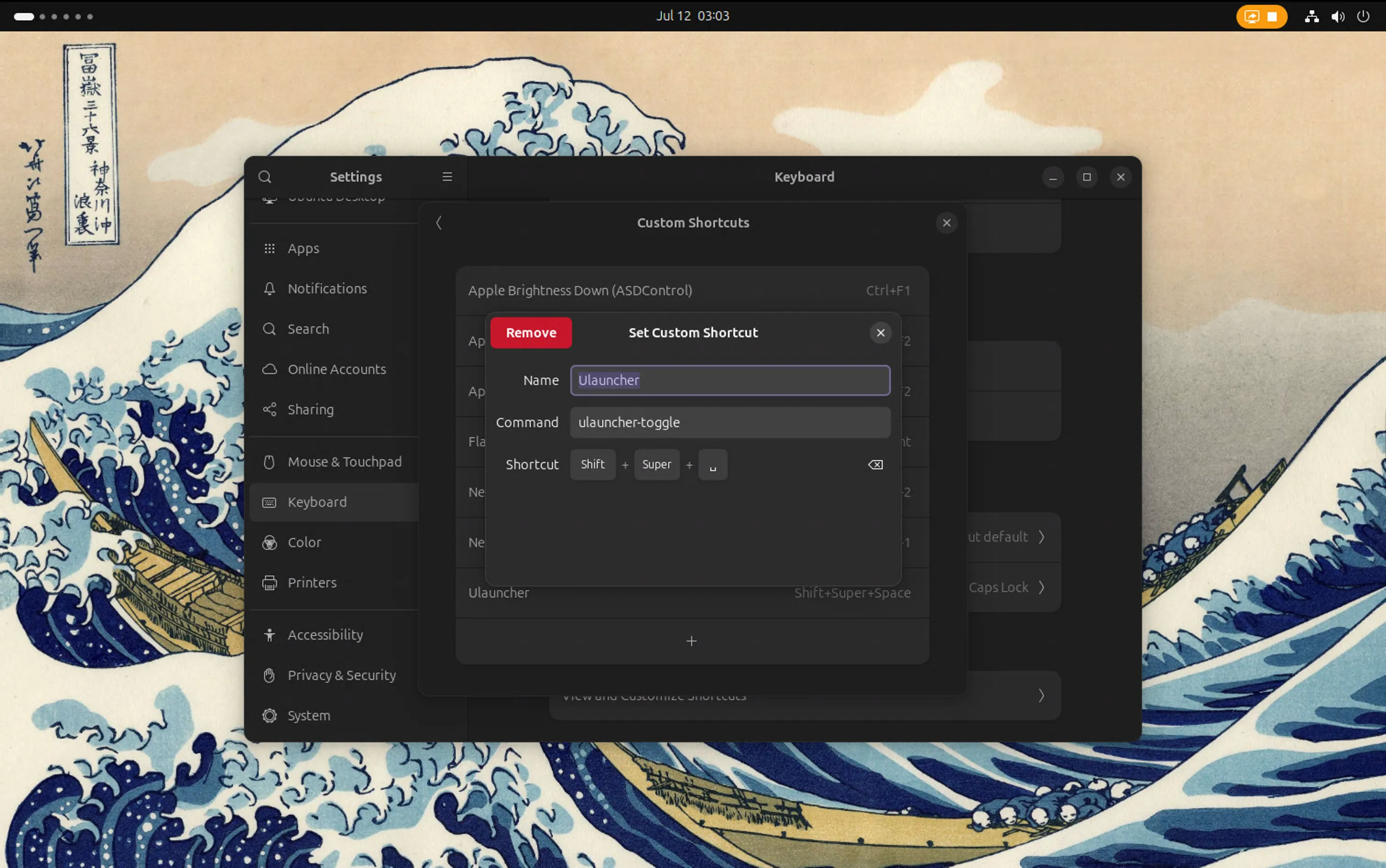

To resolve this, you can adjust the hotkeys within Omakub to avoid conflicts:

• Ulauncher (“Type app to launch”):

  • Original: Super + Space
  • New: Shift + Super + Space
  • You can find and modify this shortcut within Omakub’s settings, often under “Keyboard” or “Custom Shortcuts,” specifically looking for Ulauncher.

• “See all apps” (System):

  • Original: Super + A
  • New: Shift + Super + A

• “Close app” (Windows):

  • Original: Super + W
  • New: Shift + Super + W

By changing these keybindings in Omakub, you allow macOS to retain its system-level shortcuts while still having access to Omakub’s features with non-conflicting combinations.

Conclusion

You’ve now successfully installed Omakub on an Ubuntu 24.04 virtual machine within Proxmox! This setup provides a powerful and isolated environment for your jumphost and remote development needs, all while leveraging your existing homelab infrastructure. Enjoy your clean main PC and your new Omakub workspace!

References

• Omakub Official Website
• Omamix Manuals: Getting Started
• I Installed Omakub Five Times So You Can Do It Just Once - dev.to
• Ubuntu 24.04 Cannot Connect via RDP - Reddit

Tags:

• omakub
• ubuntu
• proxmox
• virtualization
• homelab
• remote-desktop
• jumphost

Qemu and Virt-manager in macOS (Intel-based)

Mar 12, 2025

Adekabang

Tukang Ngoprek

So, I found this old iMac (Retina 5K, 27-inch, 2017) lying around with pretty decent specs. I’m thinking of turning it into my dedicated x86 playground since my main machine is an M1 MacBook. First thing’s first: getting Qemu and Virt-manager up and running for some virtual machine action. Yeah, I know there are other VM solutions like VMware or VirtualBox, but I want to stay familiar with what’s common in enterprise environments (even if nobody’s running macOS in production, haha!).

Specification

iMac (Retina 5K, 27-inch, 2017)

• Processor: 4.2 GHz Quad-Core Intel Core i7
• Memory: 16 GB 2400 MHz DDR4
• OS Version: Ventura 13.7.4 (22H420)

Step by Step: Qemu

1. First, we need Homebrew to install everything.

   Get it here: https://brew.sh/

   /bin/bash -c "$(curl -fsSL <https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh>)"

2. Now, let’s install Qemu itself.

   Check it out here: https://formulae.brew.sh/formula/qemu

   brew install qemu

3. Verify the installation by checking the Qemu version.

   qemu-system-x86_64 --version



4. Let’s get Ubuntu running with Qemu.

   1. Before we dive in, grab the Ubuntu ISO. I’m going with the desktop version from here: https://releases.ubuntu.com/24.04/. I’ll use the desktop version (https://releases.ubuntu.com/24.04/ubuntu-24.04.2-desktop-amd64.iso).

   2. Create a disk image using qemu-img. I’m making a 20GB image in the qcow2 format.

      qemu-img create -f qcow2 ubuntu-24.04.2-desktop-amd64.qcow2 20G

   3. Fire up the VM, booting from the ISO we just downloaded (mounted as a CD drive) and attaching the virtual disk we created.

      qemu-system-x86_64 \\
          -machine type=q35,accel=hvf \\
          -smp 2 \\
          -hda ubuntu-24.04.2-desktop-amd64.qcow2 \\
          -cdrom ./ubuntu-24.04.2-desktop-amd64.iso \\
          -m 4G \\
          -vga virtio \\
          -usb \\
          -device usb-tablet \\
          -display default,show-cursor=on

      Here’s a breakdown of what those flags actually mean:

      • qemu-system-x86_64: Tells QEMU we want to emulate a 64-bit Intel/AMD system.
      • machine type=q35,accel=hvf
        • type=q35: Sets the machine chipset to Q35, emulating a modern PC with PCI Express.
        • accel=hvf: Uses the Hypervisor Framework (HVF) for hardware acceleration on macOS. This makes things much faster!
      • smp 2: Gives the VM 2 CPU cores.
      • hda ubuntu-24.04.2-desktop-amd64.qcow2: Specifies the QCOW2 disk image as the primary hard drive.
      • cdrom ./ubuntu-24.04.2-desktop-amd64.iso: Mounts the ISO as a virtual CD-ROM for booting/installing.
      • m 4G: Allocates 4GB of RAM to the VM.
      • vga virtio: Uses a Virtio-based video card for better performance.
      • usb: Enables USB support.
      • device usb-tablet: Adds a virtual USB tablet for smoother mouse input.
      • display default,show-cursor=on: Makes sure the mouse cursor is visible.

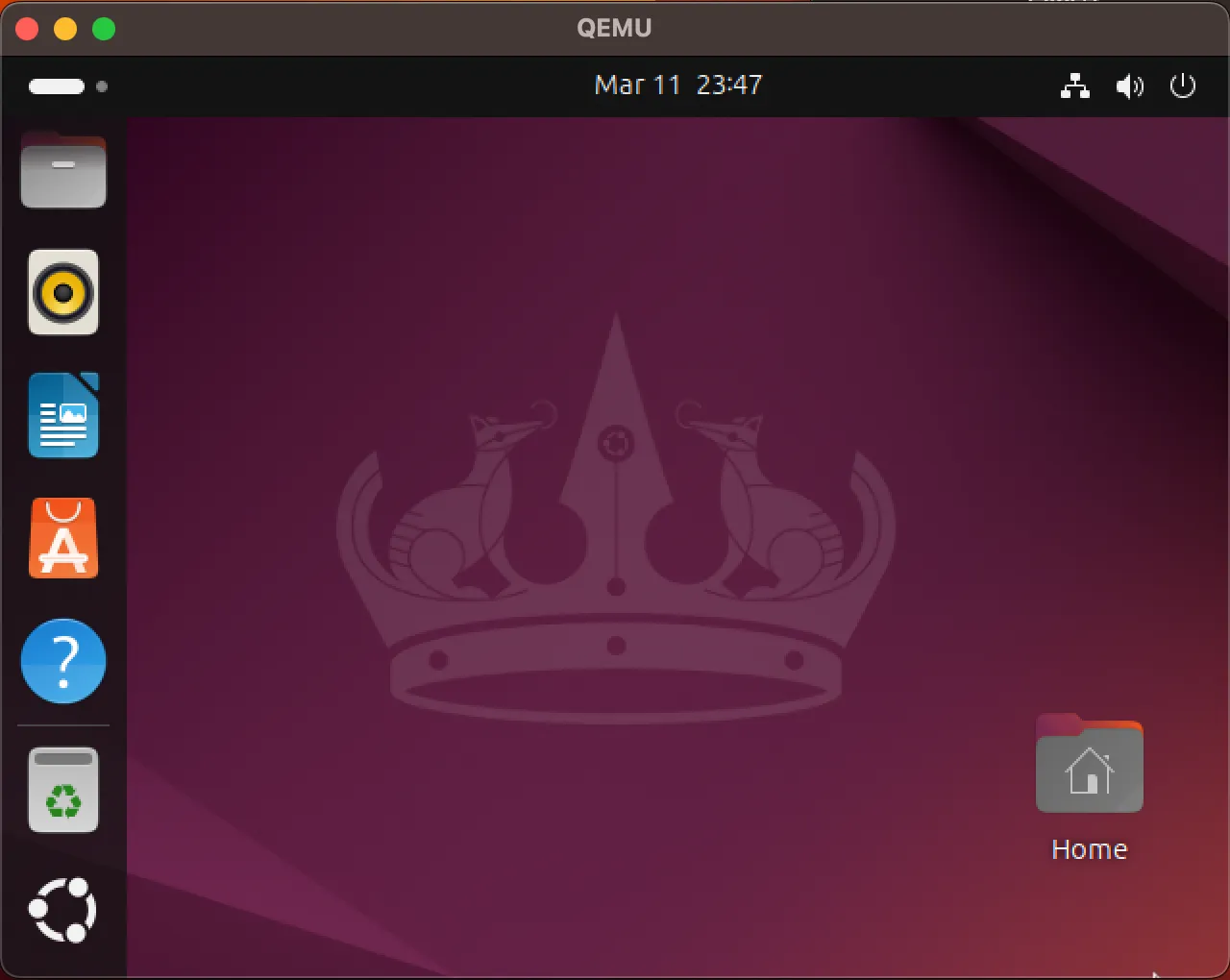

   4. The VM should boot up from the ISO. Go ahead and install the OS to the virtual disk we created earlier.

   5. Once the installation is done, you can boot the VM without the ISO.

      qemu-system-x86_64 \\
          -machine type=q35,accel=hvf \\
          -smp 2 \\
          -hda ubuntu-24.04.2-desktop-amd64.qcow2 \\
          -m 4G \\
          -vga virtio \\
          -usb \\
          -device usb-tablet \\
          -display default,show-cursor=on



   6. To shut down the VM, do it cleanly from within the OS, or, if you’re feeling lazy, just hit Ctrl+C in the terminal (but I wouldn’t recommend it!).

Step by Step: Libvirt and Virt-manager

1. Install libvirt.

   libvirt is a toolkit for managing virtualization platforms like Qemu, KVM, Xen, etc.

   Check it out here: https://formulae.brew.sh/formula/libvirt

   brew install libvirt

2. Start the libvirt service.

   brew services start libvirt

3. Install virt-manager. To make managing VMs easier, we’ll use virt-manager as a GUI.

   Check it out here: https://formulae.brew.sh/formula/virt-manager

   brew install virt-manager

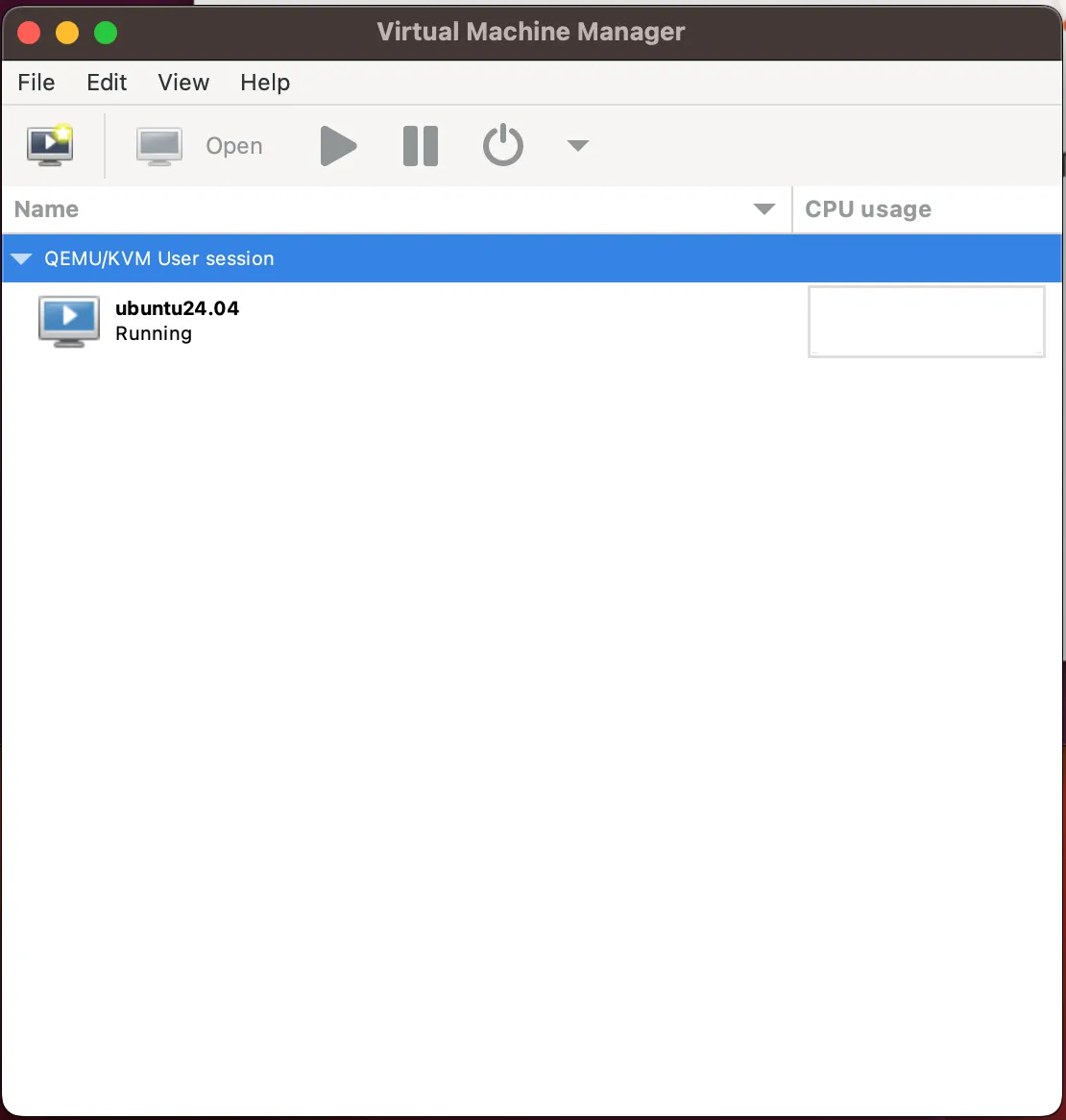

4. Start a virt-manager session.

   virt-manager -c "qemu:///session" --no-fork

5. Once the window pops up, you can install Ubuntu VMs and mess around.



Conclusion

So there you have it! Qemu, libvirt, and virt-manager all set up on macOS. It wasn’t too bad, right? Now you can spin up VMs to your heart’s content. This setup is pretty handy for testing different operating systems, playing around with software, or just generally tinkering without messing up your main system. Plus, getting familiar with these tools can be a real boost if you ever find yourself working with virtualization in a more “serious” environment. Happy virtualizing!

Reference

https://www.arthurkoziel.com/qemu-ubuntu-20-04/

https://www.arthurkoziel.com/running-virt-manager-and-libvirt-on-macos/

Tags:

• qemu
• virt-manager
• macos
• virtualization
• ubuntu

Setup Non HA Kubernetes using K3S

Feb 25, 2025

Adekabang

Tukang Ngoprek

Last Update: 25 February 2025

K3S

Resources

• Quick Start K3S
• K3S: Setup dan Konfigurasi Kubernetes Cluster
• MetalLB: Installation with Helm
• Helm: Installing from APT - Ubuntu/Debian

Non-HA Control Plan Setup and Configuration

The implementation Scenario will be configured:

• 1 Master Node
• 2 Worker Node

These three nodes will be deployed in Proxmox VE, with each specification of node:

• 4 vCPU
• 16 GB of memory
• 50 GB of storage
• Ubuntu 20.04

Step by step

VM Setup

1. Update and upgrade the package repository to the newest version.

   sudo apt update -y
   sudo apt upgrade -y

2. (optional) rename and set /etc/host for each node became:

   1. Master node → kube-master-1
   2. Worker node → kube-worker-1, kube-worker-2

   #edit /etc/hosts and add this at the end of file (adjust ip address)
   10.0.2.200 kube-master-1
   10.0.2.199 kube-worker-1
   10.0.2.198 kube-worker-2

3. Reboot to finalize the upgrade and apply the hostname.

4. Install docker with this script (Docker: Install using the conveniencescript)

   curl -fsSL https://get.docker.com -o get-docker.sh
   sudo sh get-docker.sh

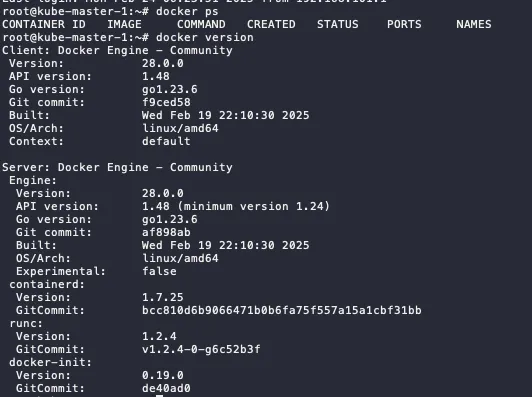

5. Check docker command and version

   docker ps
   docker version



Master Node Setup

1. Defined the K3s token. Save this token and make sure this token is the same for all nodes

   export K3S_TOKEN=kubernetesdemo123

2. The installation of master node, using this script:

   1. install the server as master node
   2. disable Traefik for ingress → will use Nginx ingress
   3. disable Servicelb → will use MetalLB

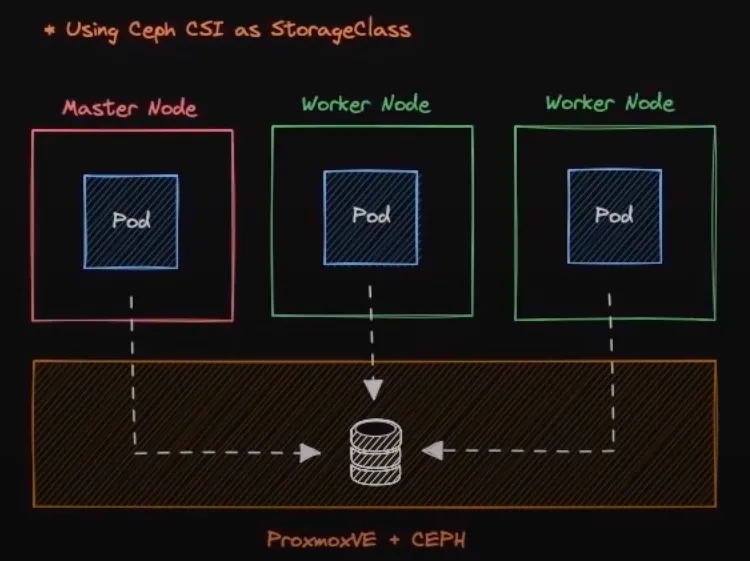

   4. disable local-storage → will use Ceph CSI
   5. declare to use docker

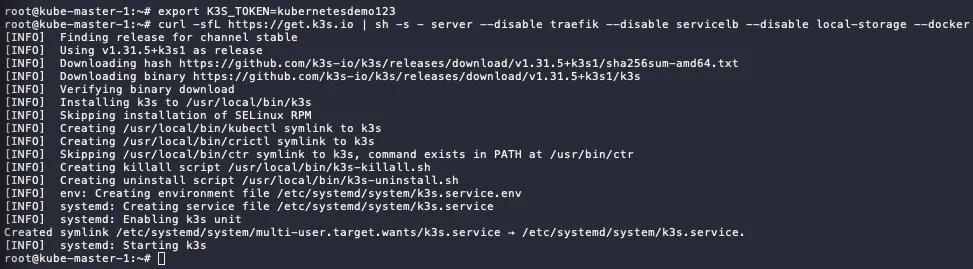

   curl -sfL https://get.k3s.io | sh -s - server --disable traefik --disable servicelb --disable local-storage --docker

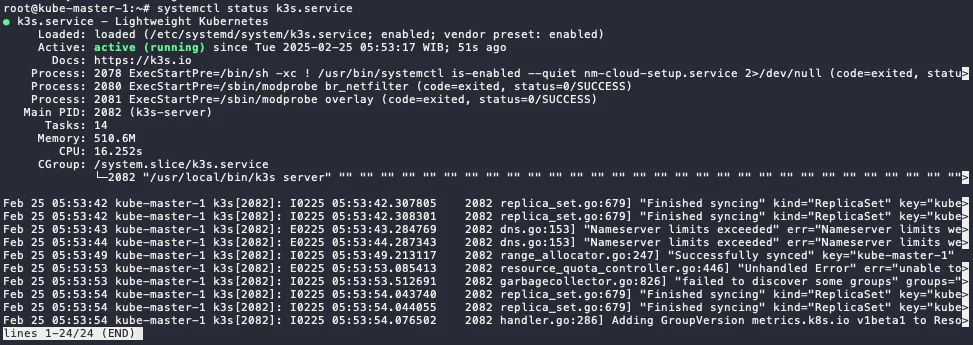

3. Check the service status, make sure it is active

   systemctl status k3s.service



4. Check kubectl command. It will display 1 node only (which is the master node).

   kubectl get node



   ⚠️ if the get error unable to read /etc/rancher/k3s/k3s.yml , you can fix with this step.

   mkdir .kube
   sudo cp /etc/rancher/k3s/k3s.yaml .kube/config.yaml
   sudo chown $USER:$GROUP .kube/config.yaml
   export KUBECONFIG=~/.kube/config.yaml

   or if you have not start the installation, you can add --write-config 644 in the end of the script, like this:

   curl -sfL https://get.k3s.io | sh -s - server --disable traefik --disable servicelb --disable local-storage --docker --write-config 644

Worker Node Setup

Do this step for all the worker node, in this scenario will be kube-worker-1 and kube-worker-2.

1. Defined the K3s token. Use the same token as defined in master node.

   export K3S_TOKEN=kubernetesdemo123

   ⚠️ If you forget the token on the master node, you can check and on the master node on this file. Copy all the string.

   cat /var/lib/rancher/k3s/server/node-token

2. The installation of worker nodes, using this script:

   1. install the server as worker node (agent)
   2. declare to use docker
   3. define the server endpoint to master node ip or domain

   curl -sfL https://get.k3s.io | sh -s - agent --docker --server https://kube-master-1:6443

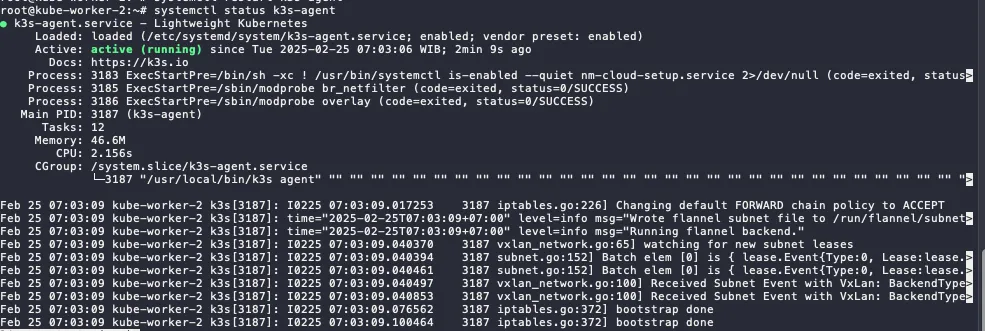

3. Check the service in the worker nodes

   systemctl status k3s-agent.service



4. Check kubectl command in master node. Now, it will display more than 1 node (which is the includes all the installed worker nodes).

   kubectl get node



⚠️ If you stuck in when starting k3s-agent. Make sure worker node and master node can be connecting. it could be firewall, proxy server, or incorrect/mismatched MTU. Script below can be use for check the connectivity.

curl -ks https://ipaddress:6443/ping

Install and Configure services in the Master Node

Because we disable some service in the master node. Now we are going to install it the replacement services.

HELM - Package Manager Installation

1. Install Helm using script below (the latest script can be seen on the Helm docs):

   curl https://baltocdn.com/helm/signing.asc | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null
   sudo apt-get install apt-transport-https --yes
   echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list
   sudo apt-get update
   sudo apt-get install helm

2. Check the version

   helm version



MetalLB - Load Balancer Installation and Configuration

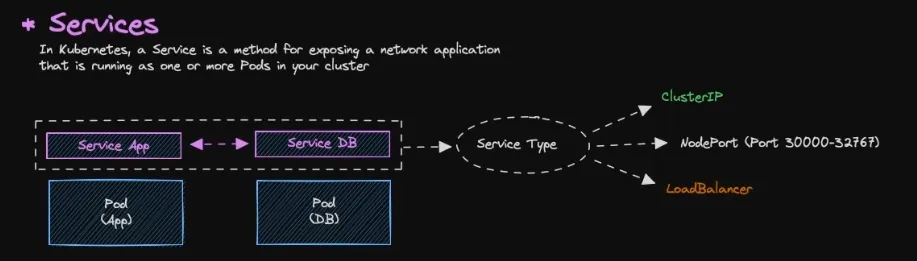

Services

• As default, all resources in Kubernetes are isolated, specifically pods.
• Pods are isolated by default. To enable communication between pods or with the external network, you need to configure Services.
• There are several type of service:
  • ClusterIP → Default services, ClusterIP services provide an internal IP address within the cluster that other pods can use to communicate. They are not directly accessible from outside the cluster.
  • NodePort (Port 30000-32767) → NodePort services expose a port on each node in the cluster, allowing external access. The port range 30000-32767 is the default range.
  • LoadBalancer → LoadBalancer services provision an external load balancer that distributes traffic to multiple pods.

Installation Step by Step

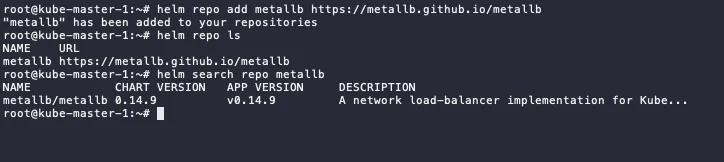

1. Add metallb repository to helm

   helm repo add metallb https://metallb.github.io/metallb

2. Check the repo list

   helm repo ls

3. Search the metallb

   helm search repo metallb



4. Pull the metallb from the repository, it will download tgz file.

   # run this in the home dir or other directory
   helm pull metallb/metallb
   # extract the tgz
   tar xvf metallb-*

5. Change directory to metallb and if there any configuration changes, you can edit values.yaml

   cd metallb

   #optional
   vim values.yaml

6. Install metallb using helm

   • Set the chart name to metallb
   • Define the file to values.yaml
   • Put the namespace to metallb-system
   • Enable debug mode
   • Create metallb-system namespace

   helm install metallb -f values.yaml . -n metallb-system --debug --create-namespace

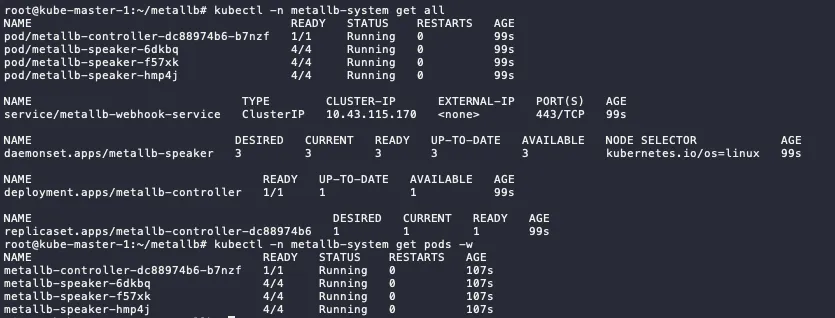

7. Check the status, if the status still init, wait until running.

   kubectl -n metallb-system get all
   kubectl -n metallb-system get pod -w



Configuration

1. First, define the address pool on ipaddresspool.yaml

   apiVersion: metallb.io/v1beta1
   kind: IPAddressPool
   metadata:
     name: default-pool
     namespace: metallb-system
   spec:
     addresses:
     - 10.0.2.11-10.0.2.100 #adjust this range

2. Apply the configuration

   kubectl apply -f ipaddresspool.yaml



3. Then, we define the L2 Advertisement config on l2advertisement.yaml

   apiVersion: metallb.io/v1beta1
   kind: L2Advertisement
   metadata:
     name: default
     namespace: metallb-system
   spec:
     ipAddressPools:
     - default-pool

4. Apply the configuration

   kubectl apply -f l2advertisement.yaml



Test the Load Balancer

1. Run demo app for the testing, the demo app using nginx image.

   kubectl run app-demo-1 --image=nginx --port=80

   #check the pod status, wait until running
   kubectl get pod

2. Since by default pod cannot communicate to outside, we need to create the service to expose the pods.

   kubectl expose pod app-demo-1 --type=LoadBalancer --target-port=80 --port=80 --name app-demo-1

   #check the pods and services
   kubectl get all

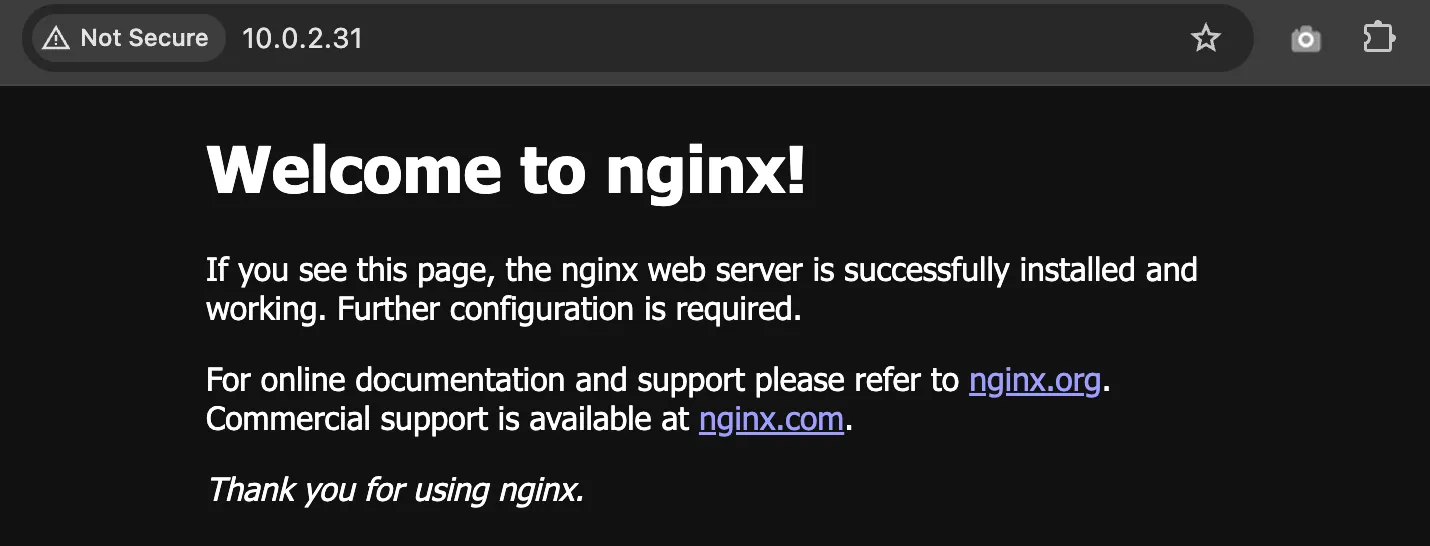

3. You can access the app using EXTERNAL-IP of service/app-demo-1 and Nginx landing page will show up.

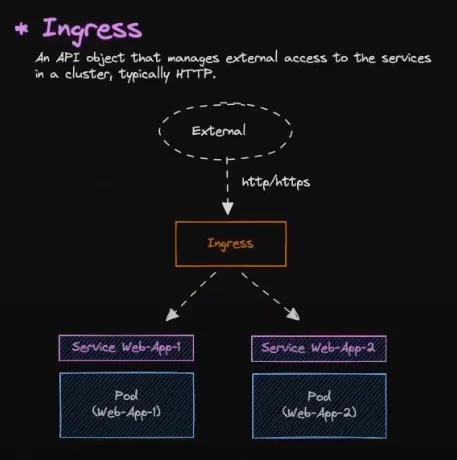

Nginx - Ingress Controller Installation and Configuration

Installation Step by Step

1. Add nginx repository to helm

   helm repo add nginx-stable https://helm.nginx.com/stable

2. Check the repo list

   helm repo ls

3. Search the nginx

   helm search repo nginx

4. Pull the nginx-ingress from the repository, it will download tgz file.

   # run this in the home dir or other directory
   helm pull nginx-stable/nginx-ingress
   # extract the tgz
   tar xvf nginx-ingress-*

5. Change directory to nginx-ingress and edit values.yaml file.

   cd nginx-ingress

   # edit values.yaml
   vim values.yaml

   # locate ingressClass and change the variable below to true
   ...
   ingressClass:
   ...
     setAsDefaultIngress: true
   ...

6. Install nginx-ingress using helm

   helm -n ingress install nginx-ingress -f values.yaml . --debug --create-namespace

7. Check the installation

   kubectl -n ingress get all



8. The EXTERNAL-IP is available and reachable, but since no resources use it, it display 404



Testing the Ingress

1. Add bitname repository to helm

   helm repo add bitnami https://charts.bitnami.com/bitnami

2. Check the repo list

   helm repo ls

3. Search the nginx, we will use bitnami/nginx for the webserver nginx

   helm search repo nginx

4. Pull the nginx from the repository, it will download tgz file.

   # run this in the home dir or other directory
   helm pull bitnami/nginx
   # extract the tgz
   tar xvf nginx-* #make sure the nginx not nginx-ingress

5. Change directory to metallb and edit values.yaml file.

   cd nginx

   # edit
   vim values.yaml

   #locate these variables
   ...
   ingress:
     enabled: true
     ...
     hostname: nginx.demo.local # make sure this FQDN is pointing to the ingress IP
     ...
     ingressClassName: "nginx" # check using `kubectl get ingressclass`
   ...

6. Install metallb using helm

   helm -n demo install demo-app -f values.yaml . --debug --create-namespace

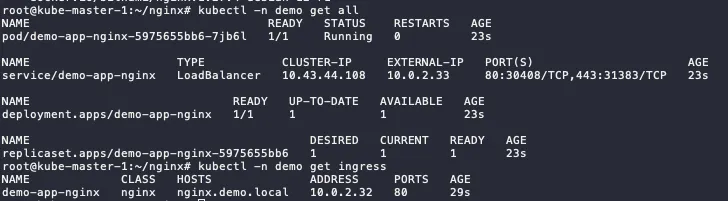

7. Check the status, if the status still init, wait until running.

   kubectl -n demo get all
   kubectl -n demo get ingress

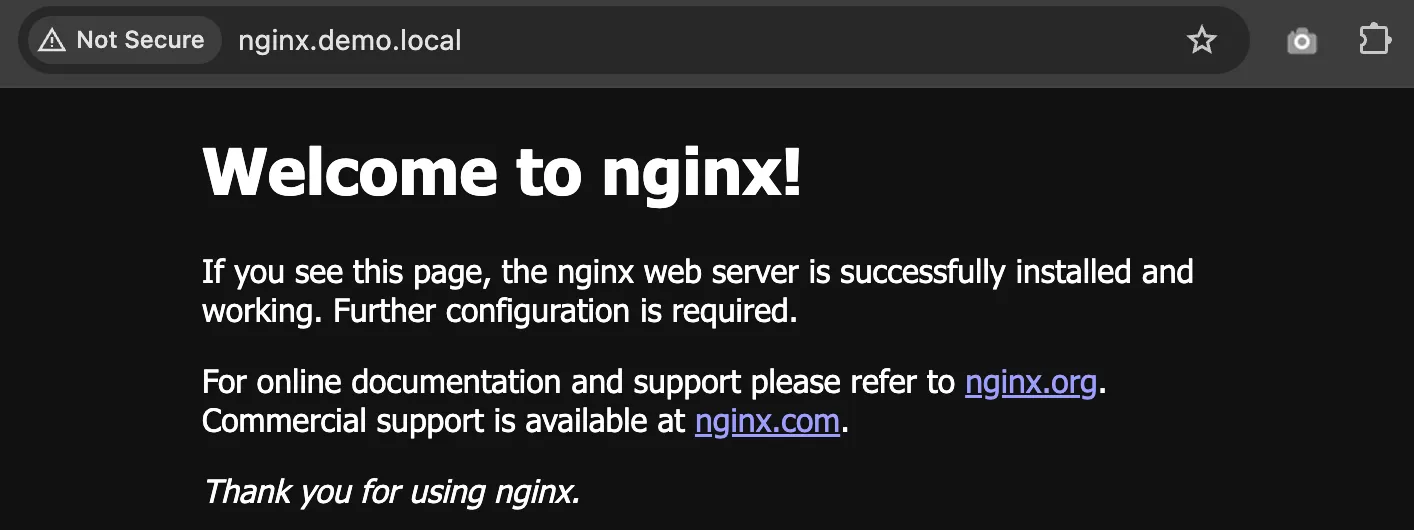

8. If you configure the FQDN in DNS or /etc/hosts correctly to ingress IP address, it will show like this



CEPH CSI - StorageClass Installation and Configuration

TODO - i don’t have CEPH cluster yet 🙈

Tags:

• k8s
• k3s
• kubernetes
• proxmox
• ubuntu

Personal ASN and IPv6 Journey

Mar 25, 2024

Adekabang

Tukang Ngoprek

Last Update: 25 March 2024

Part 1: ASN Application & Preparation

ASN Application via Lagrange

⛔ Disclaimer: Tidak ada sponsor dari Lagrange cuman discount

Lagrange Website

Pendaftaran ASN melalui Lagrange per tanggal 25 Maret 2024 ada discount 40% off dari £25 ke £15.

1. Untuk memulai aplikasi ASN, bisa langsung “Try now” dan lakukan Register akun Lagrange.

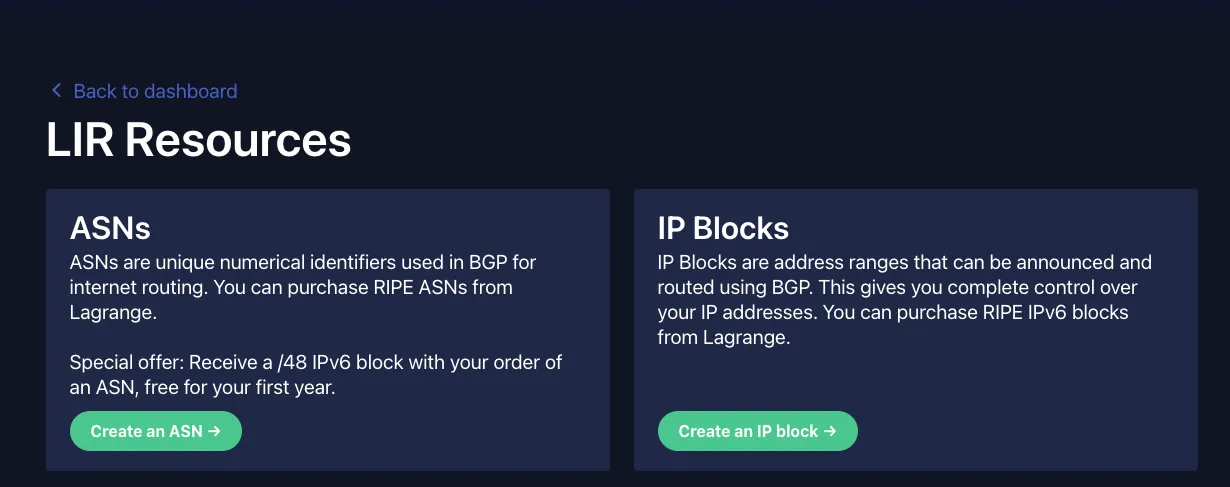

2. Langsung aja “Create an ASN” di page LIR Services - Lagrange



3. Ikutin proses purchasingnya.

4. Setelah itu akan ada Applicationnya, pilih guided, nanti akan diarahkan untuk proses pembuatan akun dan pembuatan object di RIPE. kalau bingung apa yang di isi bisa juga mengacu ke video dibawah:

   1. Video pembuatan object di RIPE : Rifqi Arief in IPv6 Indonesia Telegram Group

   2. Pastikan utk mencatat beberapa informasi dibawah saat pembuatan:

      1. RIPE ADMIN-C: [Singkatan_Nama][Identifier]-RIPE (generate dari RIPE)
      2. RIPE MNT (mnt-by): bebas tapi unique
      3. Address: alamat personal
      4. abuse-c: ACR[Identifier]-RIPE(generate saat mengisi abuse-c melalui logo lonceng)
      5. mnt-ref: INFERNO-MNT (dari Lagrange) dan mnt-by (punya sendiri)
      6. Organisation: ORG-[Singkatan_Nama][IdentifierOrg]-RIPE (generate dari RIPE)

5. Di proses ini akan ada beberapa submission di portal Lagrange yang membutuhkan informasi diatas

VPS support BGP Session

Jika sudah sampai page ini, proses selanjutnya adalah pembelian VPS yang support BGP session.

⛔ Pastikan VPS yang disewa berada pada region EU, seperti Amsterdam, Frankfurt, UK

⛔ Disclaimer: Tidak ada sponsor dari iFog (cuman harga cukup terjangkau)

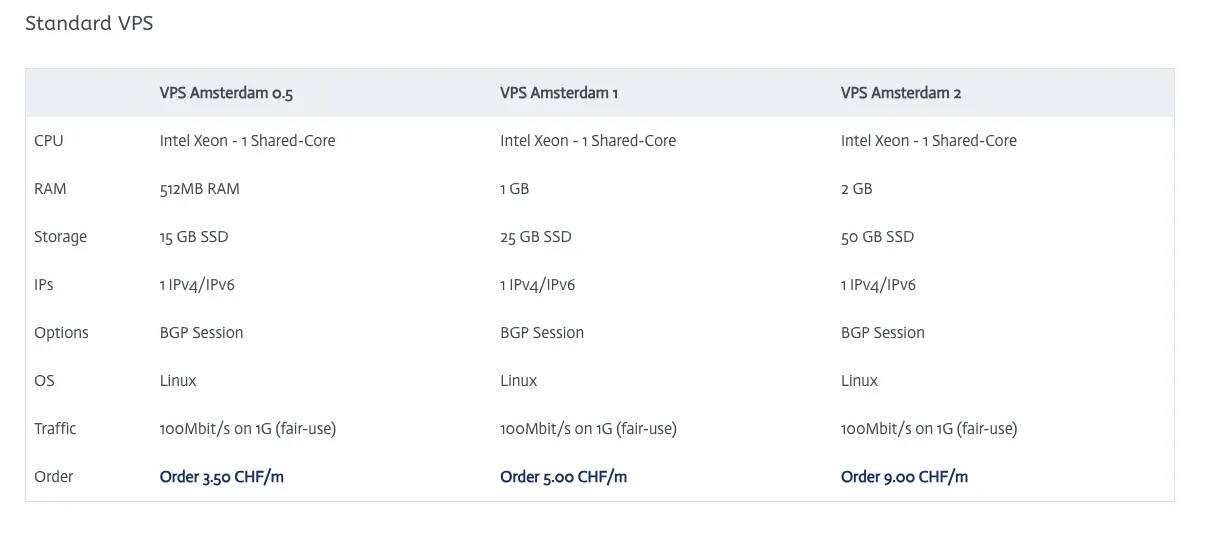

1. Pilih VPS pada region EU (kasus saya pilih di Amsterdam 1) iFog Website



2. Ikutin proses purchasingnya (payment via CC atau Paypal)

3. Beberapa catatan saat konfigurasi VPS:

   1. Hostname: FQDN [hostname].[domain].[tld]
   2. Password: optional
   3. BGP Session: ✅
   4. FogIXP Peering port: ✅
   5. Additional v6 BGP Transit via ASxxxx: optional

4. Simpan Invoice untuk nanti di upload ke ticket Lagrange

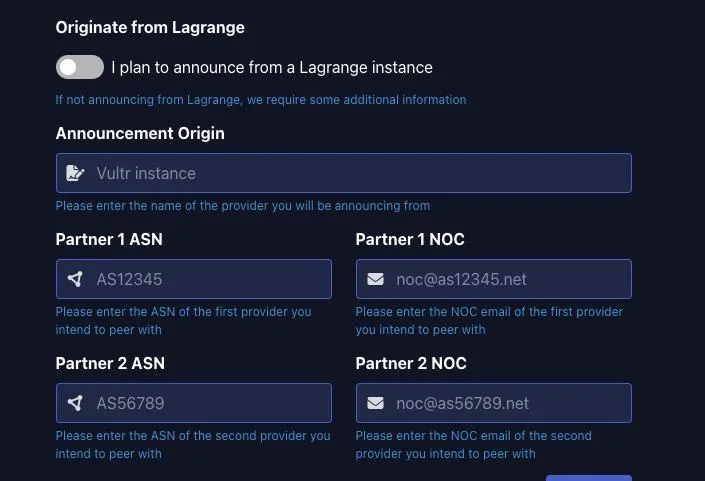

5. untuk pengisian Lagrange bisa menggunakan panduan berikut:

   1. Partner 1 ASN: ASN punya iFog atau VPS provider lainnya. iFog AMS VPS



   2. Partner 1 NOC: email dari iFog atau VPS provider lainnya. iFog NOC Contact



   3. Partner 2 ASN dan Partner 2 NOC: bisa request sponsor ke grup telegram https://t.me/IPv6_Indonesia. Saya request sponsor ke om @malhuda (Thanks om bantuannya)

   4. Setelah submit, upload invoice dari iFog atau VPS provider lainnya di halaman ticket

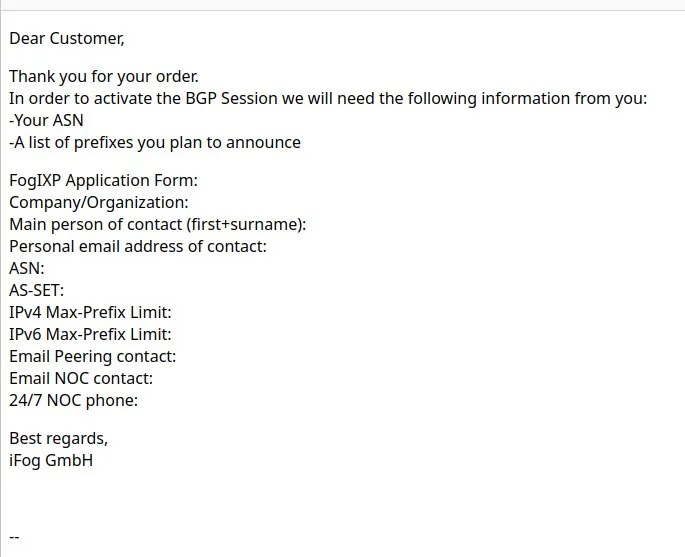

   5. Jika terima email seperti ini dari VPS provider bisa balas “My ASN is still in the process of application, I will contact you after it finished.”



   6. Tunggu deh sampe di ASN diterbitkan.

Issuing Process

Setelah ini akan ada beberapa proses approval yang dibutuhkan dari Lagrange:

1. Document Agreement: Tanda tangan menggunakan DocuSign. Pastikan masukkan kode akses yang sesuai, ada pada tiket. Position pada kolom tanda tangan bisa di isi Individual.
2. Upload ID: KTP/SIM/Paspor

---

👨‍🦳 Catatan Pendahulu

• Tapi kalau mau lepas VPS EU, wajib cari upstream ke EU, Ke netassist atau udn aja atau bgptunnel
• my.bgptunnel.com pake ini om buat presence di EU kalo nanti lepas VPS EU

Peering Application

Setelah ASN terbit, akan ada permintaan utk pengisian Application From dari FogIXP (jika VPS di iFog):

FogIXP Application Form:

• Company/Organization: Full Name
• Main person of contact (first+surname): Full Name
• Personal email address of contact: Email sendiri
• ASN: ASxxxxxx
• AS-SET: ASxxxxxx:AS-SET (buat object baru di RIPE-DB dan add ASN milik sendiri sebagai member, + button)
• IPv4 Max-Prefix Limit: 0 atau sesuai yg ingin di announce
• IPv6 Max-Prefix Limit: 2 atau sesuai yg ingin di announce
• Email Peering contact: Email sendiri
• Email NOC contact: Email sendiri
• 24/7 NOC phone: No Telp Sendiri
• A list of prefixes you plan to announce: Prefix yang didapat dari Lagrange atau sponsor

👨‍🦳 Catatan Pendahulu

• AS-SET full itu ada ASNnya didepan
  • Sudah gak bisa pakai AS-SET pendek
  • Karena yah ada drama sblmnya hahhaa
  • Tapi kalo penasaran, coba aja
• AS-UPSTREAMS itu untuk upstream ya
  • JANGAN DIMASUKKAN KE AS-SET UTAMA
  • Pisah ya om
• AS-SET khusus ASN sendiri dan downstream dan AS-SET khusus upstream
• …Untuk ASXXXXXX:AS-UPSTREAMS itu ditaruh di whois ASN aja, buat import export…
  • Jangan dimasukkan / dikirimkan ke peeringdb maupun upstream, langsung digaplok, 100%
  • Yang dikirim ke peeringdb maupun upstream, yang ASXXXXXX:AS-SET
  • Nah, pengisiannya juga membernya hanya ASN itu, dan downstream
  • Selain itu jangan coba coba masukkin, nnti bisa bisa ditabok lagi

PeeringDB

1. Lakukan registrasi di PeeringDB.
2. Masukkan email yang terdaftar di RIPE.
3. Masukkan ASN dan Organization (Nama Lengkap) pada bagian Affiliate with Organization.

Setelah Affiliate sudah di approve, dapat melengkapi informasi di organization (full name, di menu dekat profile ) dan networks (ASN, ada di dalam organization)

Configure route6 in RIPE DB

Setelah mendapatkan alokasi IP, buat object baru di RIPE DB dengan type route6

mnt-by: mnt_sendiri dan yang memberi alokasi

route6: prefix IPv6 (xxxx:xxx::/48)

origin: AS_number

Jika saat membuat route6 gagal (kasus saya alokasi dari Lagrange dengan mnt INFERNO-MNT), dapat membuat tiket di portal Lagrange dengan menyertakan prefix dan mnt_sendiri.

Request RPKI pada block IP

Setelah mendapatkan block IP bisa request ke penyedia prefix untuk setup RPKI melalui open ticket.

Install VPS

Jika berlangganan di iFog, dapat melakukan instalasi VM secara manual setelah mendapatkan akses. rekomendasi OS adalah debian 12 dan disetup secara minimal (tanpa gui).

Untuk mempermudah dapat menambahkan konfigurasi dibawah pada file ~/.ssh/config.

Host bgp-server
  HostName external_ip
  User username
  IdentityFile /path/to/private/key

dan dapat melakukan ssh dengan command dibawah:

ssh bgp-server

Part 2: Config BGP

Preparation

1. Edit network interfaces & sesuaikan masing masing parameter < > (nama interface mungkin berbeda)

   vim /etc/network/interfaces

   # This file describes the network interfaces available on your system
   # and how to activate them. For more information, see interfaces(5).

   source /etc/network/interfaces.d/*

   # The loopback network interface
   auto lo
   iface lo inet loopback

   # The primary network interface
   allow-hotplug ens18
   iface ens18 inet static
     address <IPv4_Public>/<Subnet_mask>
     gateway <IPv4_Gateway>
     # dns-* options are implemented by the resolvconf package, if installed
     dns-nameservers 9.9.9.9
     dns-search <domain>
     # disable multicast
     up ip link set dev $IFACE mtu 1500
     up ip link set multicast off dev $IFACE

   iface ens18 inet6 static
     address <IPv6 Public>
     netmask <Subnet_mask>
     gateway <IPv6_Gateway>
     # dns-* options are implemented by the resolvconf package, if installed
     dns-nameservers 2620:fe::fe
     dns-search <domain>
     # disable multicast
     up ip link set dev $IFACE mtu 1500
     up ip link set multicast off dev $IFACE

   # The secondary network interface to FogIXP
   iface ens19 inet6 static
     address <IPv6 Public>
     netmask <Subnet_mask>
     gateway <IPv6_Gateway>
     # dns-* options are implemented by the resolvconf package, if installed
     dns-nameservers 2620:fe::fe
     dns-search <domain>
     # disable multicast
     up ip link set dev $IFACE mtu 1500
     up ip link set multicast off dev $IFACE

   systemctl restart networking

2. Edit sysctl.conf (backup default jika diperlukan)

   # cp /etc/sysctl.conf{,.default}
   vim /etc/sysctl.conf

   fs.file-max = 16777216
   fs.nr_open = 1073741824
   kernel.hung_task_timeout_secs = 0
   kernel.msgmax = 65536
   kernel.msgmnb = 65536
   net.core.default_qdisc = cake
   net.core.netdev_max_backlog = 30000
   net.core.rmem_default = 67108864
   net.core.rmem_max = 67108864
   net.core.somaxconn = 65536
   net.core.wmem_max = 67108864
   net.ipv4.conf.all.accept_redirects = 0
   net.ipv4.conf.all.accept_source_route = 0
   net.ipv4.conf.all.arp_announce = 1
   net.ipv4.conf.all.arp_filter = 1
   net.ipv4.conf.all.arp_ignore = 2
   net.ipv4.conf.all.forwarding = 1
   net.ipv4.conf.all.ignore_routes_with_linkdown = 1
   net.ipv4.conf.all.rp_filter = 0
   net.ipv4.conf.all.secure_redirects = 0
   net.ipv4.conf.all.send_redirects = 0
   net.ipv4.fib_multipath_use_neigh = 1
   net.ipv4.icmp_echo_ignore_broadcasts = 1
   net.ipv4.icmp_errors_use_inbound_ifaddr = 1
   net.ipv4.icmp_ignore_bogus_error_responses = 1
   net.ipv4.icmp_msgs_per_sec = 2500
   net.ipv4.icmp_ratelimit = 0
   net.ipv4.igmp_max_memberships = 100
   net.ipv4.ip_forward = 1
   net.ipv4.ip_local_port_range = 1024 65535
   net.ipv4.neigh.default.base_reachable_time_ms = 14400000
   net.ipv4.neigh.default.gc_thresh1 = 1024
   net.ipv4.neigh.default.gc_thresh2 = 2048
   net.ipv4.neigh.default.gc_thresh2 = 8192
   net.ipv4.neigh.default.gc_thresh3 = 4096
   net.ipv4.neigh.default.gc_thresh3 = 16384
   net.ipv4.route.max_size = 1073741824
   net.ipv4.tcp_congestion_control = bbr
   net.ipv4.tcp_dsack = 1
   net.ipv4.tcp_fin_timeout = 30
   net.ipv4.tcp_keepalive_time = 120
   net.ipv4.tcp_l3mdev_accept = 1
   net.ipv4.tcp_max_syn_backlog = 8192
   net.ipv4.tcp_mem = 4194304 16777216 67108864
   net.ipv4.tcp_no_metrics_save = 1
   net.ipv4.tcp_rmem = 4194304 16777216 67108864
   net.ipv4.tcp_sack = 1
   net.ipv4.tcp_syn_retries = 3
   net.ipv4.tcp_synack_retries = 3
   net.ipv4.tcp_syncookies = 1
   net.ipv4.tcp_timestamps = 1
   net.ipv4.tcp_window_scaling = 1
   net.ipv4.tcp_wmem = 4194304 16777216 67108864
   net.ipv6.conf.all.accept_ra_defrtr = 0
   net.ipv6.conf.all.accept_ra_pinfo = 0
   net.ipv6.conf.all.accept_ra_rtr_pref = 0
   net.ipv6.conf.all.accept_redirects = 0
   net.ipv6.conf.all.accept_source_route = 0
   net.ipv6.conf.all.autoconf = 0
   net.ipv6.conf.all.dad_transmits = 0
   net.ipv6.conf.all.forwarding = 1
   net.ipv6.conf.all.ignore_routes_with_linkdown = 1
   net.ipv6.conf.all.router_solicitations = -1
   net.ipv6.icmp.ratelimit = 0
   #net.ipv6.conf.all.send_redirects = 0
   net.ipv6.neigh.default.base_reachable_time_ms = 14400000
   net.ipv6.neigh.default.gc_thresh1 = 1024
   net.ipv6.neigh.default.gc_thresh2 = 2048
   net.ipv6.neigh.default.gc_thresh2 = 8192
   net.ipv6.neigh.default.gc_thresh3 = 4096
   net.ipv6.neigh.default.gc_thresh3 = 16384
   net.ipv6.route.max_size = 32768000
   vm.max_map_count = 1048575
   vm.swappiness = 100

   net.ipv6.conf.all.accept_ra = 0
   #net.ipv6.conf.all.proxy_ndp = 1

   #net.netfilter.nf_conntrack_acct = 1
   #net.netfilter.nf_conntrack_checksum = 0
   #net.netfilter.nf_conntrack_max = 65535
   #net.netfilter.nf_conntrack_tcp_timeout_established = 7440
   #net.netfilter.nf_conntrack_udp_timeout = 60
   #net.netfilter.nf_conntrack_udp_timeout_stream = 180
   #net.netfilter.nf_conntrack_helper = 1

   # net.ipv6.conf.all.disable_ipv6 = 1

   Config sesuai interface IXP yang dimiliki

   ### Disable multicast FogIXP Interface ###
   net.ipv4.conf.<interface_name>.arp_announce = 1
   net.ipv4.conf.<interface_name>.arp_filter = 1
   net.ipv4.conf.<interface_name>.arp_ignore=2
   net.ipv4.conf.<interface_name>.arp_notify=1
   net.ipv4.conf.<interface_name>.proxy_arp = 0
   net.ipv4.conf.<interface_name>.rp_filter=0
   net.ipv4.neigh.default.gc_interval = 30
   net.ipv4.neigh.<interface_name>.base_reachable_time_ms = 14400000
   net.ipv4.neigh.<interface_name>.gc_stale_time = 60
   net.ipv6.conf.<interface_name>.accept_ra = 0
   net.ipv6.conf.<interface_name>.autoconf = 0
   net.ipv6.conf.<interface_name>.router_solicitations = -1
   net.ipv6.neigh.default.gc_interval = 30
   net.ipv6.neigh.<interface_name>.base_reachable_time_ms = 14400000
   net.ipv6.neigh.<interface_name>.gc_stale_time = 60

   sysctl -p
   # or
   reboot

3. Pre Setup (optional)

   Github: Xeoncross/lowendscript, scope:

   • update_timezone
   • remove_unneeded
   • update_upgrade
   • install_dash
   • install_vim
   • install_nano
   • install_htop
   • install_mc
   • install_iotop
   • install_iftop
   • install_syslogd
   • install_curl
   • apt_clean

   wget --no-check-certificate https://raw.github.com/Xeoncross/lowendscript/master/setup-debian.sh
   chmod a+rx setup-debian.sh
   ./setup-debian.sh system

4. Timezone and NTP

   apt install ntp -y

   Edit NTP configuration

   vim /etc/ntp.conf

   server 0.debian.pool.ntp.org iburst
   server 1.debian.pool.ntp.org iburst
   server 2.debian.pool.ntp.org iburst
   server 3.debian.pool.ntp.org iburst

   sudo systemctl restart ntp

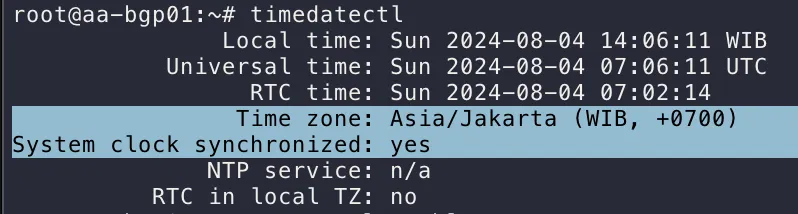

   Set Timezone and see status

   timedatectl set-timezone Asia/Jakarta
   timedatectl



Konfigurasi Pathvector

1. Install Pathvector dan Bird2

   curl https://repo.pathvector.io/pgp.asc > /usr/share/keyrings/pathvector.asc
   echo "deb [signed-by=/usr/share/keyrings/pathvector.asc] https://repo.pathvector.io/apt/ stable main" > /etc/apt/sources.list.d/pathvector.list
   apt update && apt install -y pathvector bird2

2. Konfigurasi /etc/pathvector.yml

   vim /etc/pathvector.yml

   first block

   asn: <your_asn>
   bgpq-args: "-S AFRINIC,APNIC,ARIN,LACNIC,RIPE"
   default-route: false
   irr-query-timeout: 30
   irr-server: "rr.ntt.net"
   merge-paths: true
   peeringdb-api-key: "<peeringdb_api_key>"
   peeringdb-query-timeout: 30
   prefixes:
     - "<prefix_plan_to_be_announce>"
     - "<prefix_plan_to_be_announce>"
   router-id: "<an_ipv4_address>"
   rtr-server: "172.65.0.2:8282"

   Catatan

   • Ubahlah your_asn menjadi ASN anda.
   • Lalu, IRR hanya valid untuk AFRINIC, APNIC, ARIN, LACNIC, RIPE
   • Tidak menerima rute default
   • IRR server menggunakan NTT
   • Ubah peeringdb_api_key dengan kunci milik anda sendiri. Hak akses pada PeeringDB gunakan hanya baca
   • Ubahlah prefix_plan_to_be_announce dengan prefix yang akan di gunakan.
   • Ubahlah router-id dengan IPv4 VPS anda (atau gunakan IP lokal jika memang tidak ada IP publiknya (karena hanya sebagai pengenal saja)).
   • rtr-server menggunakan Cloudflare

   Aktivasi kernel karena akan menggunakan full table

   kernel:
     learn: true

   # BGP Large Communities
   # <your_asn>:1:1 - Learned from upstream
   # <your_asn>:1:2 - Learned from route server
   # <your_asn>:1:3 - Learned from peer
   # <your_asn>:1:4 - Learned from downstream
   # <your_asn>:1:5 - Learned from iBGP

   Template (ganti your_asn dengan ASN yang dimiliki gunakan sesuai kebutuhan)

   templates:
     upstream:
       add-on-import:
         - <your_asn>:1:1
       allow-local-as: true
       announce:
         - <your_asn>:1:4
       local-pref: 100
       remove-all-communities: <your_asn>

     routeserver:
       add-on-import:
         - <your_asn>:1:2
       announce:
         - <your_asn>:1:4
       auto-import-limits: true
       enforce-first-as: false
       enforce-peer-nexthop: false
       filter-transit-asns: true
       local-pref: 200
       remove-all-communities: <your_asn>

     peer:
       add-on-import:
         - <your_asn>:1:3
       announce:
         - <your_asn>:1:4
       auto-as-set: true
       auto-import-limits: true
       filter-irr: true
       filter-transit-asns: true
       irr-accept-child-prefixes: true
       local-pref: 300
       remove-all-communities: <your_asn>

     downstream:
       add-on-import:
         - <your_asn>:1:4
       allow-blackhole-community: true
       announce:
         - <your_asn>:1:1
         - <your_asn>:1:2
         - <your_asn>:1:3
       auto-as-set: true
       auto-import-limits: true
       filter-irr: true
       filter-transit-asns: true
       irr-accept-child-prefixes: true
       local-pref: 400
       remove-all-communities: <your_asn>

     ibgp:
       allow-local-as: true
       asn: <your_asn>
       direct: true
       enforce-first-as: false
       enforce-peer-nexthop: false
       filter-irr: false
       filter-rpki: false
       next-hop-self: true
       remove-all-communities: <your_asn>

   Catatan:

   • Template upstream hanya digunakan untuk transit AS
   • Template routeserver hanya digunakan untuk peering ke routeserver
   • Template peer hanya digunakan untuk melakukan bilateral peering
   • Template downstream hanya boleh dipakai untuk melakukan downstream AS pihak lain
   • Template ibgp hanya digunakan untuk AS yang sama

   Template peers (gunakan sesuai kebutuhan)

   peers:
   ############
   # UPSTREAM #
   ############
     upstream_name:
       asn: neigh_asn
       disabled: false
       listen6: "<local_address>"
       local-pref: 100
       neighbors:
         - "<neigh_address>"
       template: upstream

   ###############
   # ROUTESERVER #
   ###############
     routeserver_name:
       asn: neigh_asn
       disabled: false
       listen4: "<local_address>"
       listen6: "<local_address>"
       local-pref: 200
       neighbors:
         - "<neigh_address>"
         - "<neigh_address>"
       template: routeserver

   ###########
   # PEERING #
   ###########
     peering_name:
       asn: neigh_asn
       disabled: false
       listen6: "<local_address>"
       local-pref: 300
       neighbors:
         - "<neigh_address>"
       template: peer

   ############
   # INTERNAL #
   ############
     ibgp_name:
       add-on-import:
         - <your_asn>:1:1
       announce:
         - <your_asn>:1:1
       disabled: false
       listen6: "<local_address>"
       local-port: 179
       local-pref: 150
       neighbor-port: 179
       neighbors:
         - "<neigh_address>"
       template: ibgp

   Generate bird config:

   pathvector generate

   Cek Routing sudah masuk atau blm

   ip -6 route

   Cek status BGP

   birdc show protocol

3. Set cron untuk update IRR prefix lists dan PeeringDB prefix limits setiap 12 jam.

   #crontab -e
   0 */12 * * * pathvector generate

Reference

• https://pathvector.io/docs/installation
• https://t.me/IPv6_Indonesia/104851
• https://www.youtube.com/watch?v=a51noB2brjM

Part 3: Set Up Interface

1. Buat dummy interface script

   vim /usr/local/bin/setup-dummy-interface.sh

   #!/bin/bash
   ip link add dummy0 type dummy
   ip addr add <YOUR_IPV4_INTERFACE_IP>/24 dev dummy0
   ip addr add <YOUR_IPV6_INTERFACE_IP>/64 dev dummy0
   ip link set dummy0 up

   chmod +x /usr/local/bin/setup-dummy-interface.sh

2. Buat Systemd Service

   vim /etc/systemd/system/dummy-interface.service

   [Unit]
   Description=Setup Dummy Interface
   After=network.target

   [Service]
   ExecStart=/usr/local/bin/setup-dummy-interface.sh
   RemainAfterExit=yes

   [Install]
   WantedBy=multi-user.target

   systemctl enable dummy-interface.service
   systemctl start dummy-interface.service

3. Test Koneksi

   1. Ping

      ping -I <YOUR_IPV4_INTERFACE_IP> 8.8.8.8
      ping6 -I <YOUR_IPV6_INTERFACE_IP> 2001:4860:4860::8888

   2. Curl

      curl --interface <YOUR_IPV4_INTERFACE_IP> -4 ifconfig.me
      curl --interface <YOUR_IPV6_INTERFACE_IP> -6 ifconfig.me

   3. mtr

      mtr -I dummy0 google.com

Part 4: Tunnel ke Rumah atau DC

Main Server (BGP Router)

1. Install wireguard

   apt update
   apt install wireguard

2. Generate Wireguard Private dan Public key

   wg genkey | tee /etc/wireguard/private.key
   chmod 600 /etc/wireguard/private.key
   cat /etc/wireguard/private.key | wg pubkey | tee /etc/wireguard/public.key

   # Baris Pertama Private Key
   # Baris Kedua Public Key -> simpan untuk konfigurasi client server

3. Buat Konfigurasi Wireguard di /etc/wireguard/wg0.conf

   [Interface]
   PrivateKey = <Your-Main-Server-Private-Key>
   Address = <Your-Main-Server-IPv6-Allocation>/64
   ListenPort = 51820
   Table = off

   [Peer]
   PublicKey = <Your-Client-Public-Key> #setelah digenerate
   AllowedIPs = <Your-Client-IPv6-Allocation>/128

4. Enable dan Start Wireguard Setelah Public Key Client di generate

   systemctl enable wg-quick@wg0
   systemctl start wg-quick@wg0

5. Konfigurasi forwarding

   # Port Forwarding for IPv4 - opsional jika announce IPv4
   net.ipv4.ip_forward=1

   # Port forwarding for IPv6
   net.ipv6.conf.all.forwarding=1

6. Apply konfigurasi forwarding

   sudo sysctl -p

Client Server (Home Server) - Debian/Ubuntu

1. Install wireguard

   apt update
   apt install wireguard

2. Generate Wireguard Private dan Public key

   wg genkey | tee /etc/wireguard/private.key
   chmod 600 /etc/wireguard/private.key
   cat /etc/wireguard/private.key | wg pubkey | tee /etc/wireguard/public.key

   # Baris Pertama Private Key
   # Baris Kedua Public Key -> Masukkan ke konfigurasi main server

3. Buat Konfigurasi Wireguard di /etc/wireguard/wg0.conf

   [Interface]
   PrivateKey = <Your-Client-Private-Key>
   Address = <Your-Client-IPv6-Allocation>/64
   DNS = 2606:4700:4700::1111
   DNS = 2606:4700:4700::1001

   [Peer]
   PublicKey = <Your-Main-Server-Public-Key>
   Endpoint = <Main-Server-Public-IPv6>:51820
   AllowedIPs = ::/0
   PersistentKeepalive = 25

4. Enable dan Start Wireguard Setelah Public Key Client digenerate

   systemctl enable wg-quick@wg0
   systemctl start wg-quick@wg0

Uji Coba di Client Server

1. Ping

   ping6 -I <YOUR_IPV6_INTERFACE_IP> 2001:4860:4860::8888

2. Curl

   curl --interface <YOUR_IPV6_INTERFACE_IP> -6 ifconfig.me

3. mtr

   mtr -I dummy0 google.com

Miscellaneous

Generate Wireguard QRCode

apt install qrencode
qrencode -t ansiutf8 < /etc/wireguard/wg-client.conf

https://www.cyberciti.biz/faq/how-to-generate-wireguard-qr-code-on-linux-for-mobile/

Reference

• https://www.reddit.com/r/homelab/comments/153uwj9/want_to_get_started_with_bgp_links_that_helped_me/
• https://chown.me/blog/getting-my-own-asn
• https://amanjuman.medium.com/setting-up-bgp-routing-with-pathvector-and-bird-on-ubuntu-3f8b92a01669
• https://www.animmouse.com/p/my-asn-journey-configuring-bgp-on-vps/
• https://www.animmouse.com/p/my-asn-journey-bring-home-the-ipv6-via-wireguard/
• https://docs.vultr.com/configuring-bgp-on-vultr

Tags:

• ipv6
• personal-asn
• bgp
• vps
• debian

Welcome

Aug 26, 2021

Adekabang

Tukang Ngoprek

8Labs is a virtual labs platform where you can experiment fearlessly with real Linux environments—no vendor lock-in, no heavy VPS bills. Launch cloud-init ready VMs, get full root access, and practice real-world workflows for systems, networking, and deployments.

What is 8Labs?

8Labs provides on-demand virtual machines for learning and building. It’s especially useful for developers, students, researchers, and homelabbers who want a practical, open stack.

Highlights:

• KVM virtualization on Proxmox
• Public IPv6 per lab and private IPv4 networking
• Cloud-init templates (Debian, Ubuntu, Rocky/Alma, FreeBSD)
• In-browser consoles (noVNC, xTerm.js)
• Snapshots and backups on-platform
• Fair-use credits and clear guardrails

Why we built this

We want to make hands-on Linux, networking, and infrastructure education accessible and affordable—without forcing you into a single cloud ecosystem. The platform favors open-source tooling and transparent operations.

Get started

• Documentation: https://8labs.id/docs
• Cloud Panel: https://cloud.8labs.id
• Client/Billing Panel: https://my.8labs.id
• Main site: https://8labs.id

If you’re new here, start with the docs and spin up your first lab. Have fun, break things, and learn fast.

— 8Labs Team

Tags:

• 8labs
• welcome
• announcement

Newer posts
